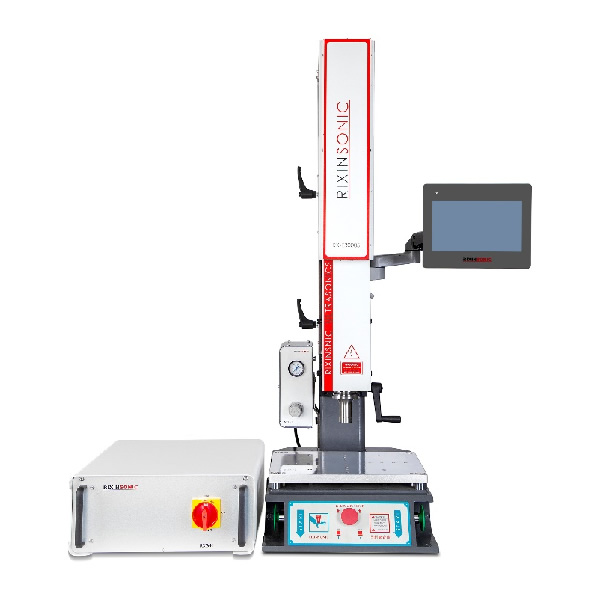

Model：RX-E3000S

Design advantages
█ modular design: can be used in special equipment and automatic production line, convenient integration, high precision, good stability and strong repeatability
█ the actuator can carry different power ultrasonic sounders and control systems, making the equipment more widely used
█ high strength square mechanism, adopting swallow tail Cao design and mechanical lifting structure, to ensure the performance and stability of the equipment, and the repeated operation of FESTO cylinder is stable
█ ultrasonic triple group installation, adopting the design structure of rapid mold change, and the mold change for larger than the mold is easily completed

Product details

Equipment description
1. Composition structure
(1) Ultrasonic actuator (rack)
(2) Steam and pressure control (pressure control is optional)
(3) Ultrasonic sounder and control system
2. Titanium alloy hard bonded amplitude modulator 1:1.50, 1:20 (optional)
3. High performance titanium alloy transducer
4. Digital ultrasonic sounder
(1) Digital full automatic frequency search anti-jamming control loop system
(2) Ultrasonic trigger mode: time (pressure and distance are optional)
(3) Ultrasonic welding mode: time, energy, amplitude segmentation, continuous ultrasonic, secondary ultrasonic (distance welding is optional)
(4) System abnormal protection
Abnormal frequency, excessive current, power overload, excessive voltage and high impedance
(5) Mold impedance analysis and automatic protection function
5. Ultrasonic control system
(1) Welding steam pressure digital input control (pressure control is optional)
(2) Welding quality management
(3) Welding data saving and output management
(4) Welding mode data management
(5) Welding working curve
(6) 485 communication port

Rx-e3000 series equipment specification

Model	RX-PW30	RX-PW30
Frequency	40KHZ	35KHZ
Ultrasonic electric box generator	RX-MSG4008	RX-MSG3512
Output power	400/800W	800/1200/W
Maximum pressure (n)	600N	600N
Net weight	45.8kg (excluding the weight of electric box)	45.8kg (excluding the weight of electric box)
Clamping height	50-110mm (excluding mold height)	50-110mm (excluding mold height)
Welding stroke	30mm	30mm
Operating air pressure	0.25-7Kg
Z axis accuracy control	±0.02mm	±0.02mm
Converter	RXSONIC	RXSONIC
Cooling system	Air cooling	Air cooling
Control system	RX-MSG-P/S/X	RX-MSG-P/S/X
Input voltage	220-240VAC	220-240VAC
Language selection	chinese	chinese
Overall dimension	L590 × W385 × H469MM
