超声波金属焊接机

Ultrasonic

Ultrasonic metal welding equipment

Model: RX-PW30S

Design advantages
1. Modular design: it can be easily integrated in special equipment and production line; High precision, good stability and strong universality
2. Ultrasonic sounder and control system with different power and frequency can be selected to make the application of the equipment more flexible.

Product details

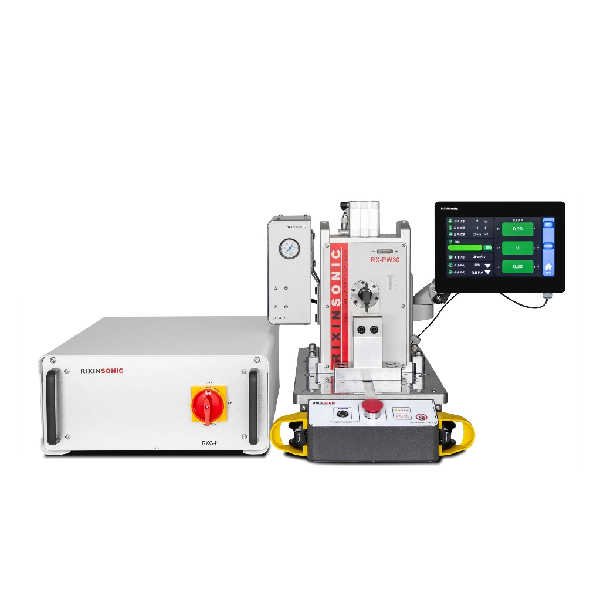

Equipment description
1. Composition structure
(1) Ultrasonic actuator (rack)
(2) Turbine operation module
(3) Ultrasonic welding and control system
2. Titanium alloy hard bonded amplitude modulator, 1:1.5, 1:2 (optional)
3. High performance transducer
4. Digital ultrasonic sounder
(1) Digital full-automatic frequency search anti-interference control loop system.
(2) Ultrasonic trigger mode: time
(3) Ultrasonic welding mode: time, phase energy, continuous ultrasonic, amplitude segmentation, secondary ultrasonic
(5) System abnormal protection
Abnormal frequency, excessive current, power overload, excessive voltage and high impedance
(6) Welding quality management
(7) Mold impedance analysis and automatic protection function
5. Ultrasonic control system
(1) The electric box is equipped with external control panel of the system
(2) With external control I / O output
(3) 485 communication port (optional)

Rx-pw30 series equipment specification

Model	RX-PW30	RX-PW30
Frequency	40KHZ	35KHZ
Ultrasonic electric box generator	RX-MSG4008	RX-MSG3512
Output power	400/800W	800/1200/W
Maximum pressure (n)	600N	600N
Net weight	45.8kg (excluding the weight of electric box)	45.8kg (excluding the weight of electric box)
Clamping height	50-110mm (excluding mold height)	50-110mm (excluding mold height)
Welding stroke	30mm	30mm
Operating air pressure	0.25-7Kg
Z-axis accuracy control	±0.02mm	±0.02mm
Converter	RXSONIC	RXSONIC
Cooling system	Air cooling	Air cooling
Control system	RX-MSG-P/S/X	RX-MSG-P/S/X
Input voltage	220-240VAC	220-240VAC
Language selection	chinese	chinese
Overall dimension	L590 × W385 × H469MM
