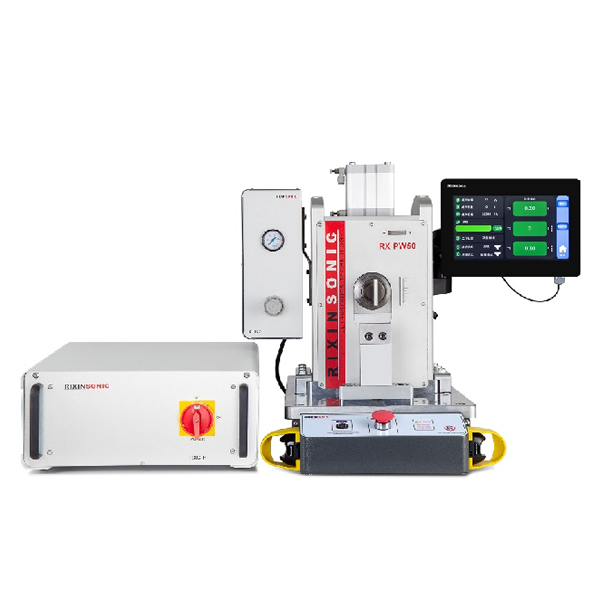

Model: RX-PW50X

Design advantages
1. Modular design: it can be easily integrated in special equipment and production line; High precision, good stability and strong universality
2. Ultrasonic sounder and control system with different power and frequency can be selected to make the application of the equipment more flexible.

Product details

Equipment description
1. Composition structure
(1) Ultrasonic actuator (rack)
(2) Steam and pressure control system
(3) Ultrasonic sounder and control system
2. Titanium alloy hard bonded amplitude modulator 1:1.50, 1:20 (optional)
3. High performance titanium alloy transducer
4. Digital ultrasonic sounder
(1) Digital full automatic frequency search anti-jamming control loop system
(2) Ultrasonic trigger mode: time, pressure and distance
(3) Ultrasonic welding mode: time, energy, relative distance, absolute distance, continuous ultrasonic, secondary ultrasonic
(4) System abnormal protection: abnormal frequency, excessive current, power overload, excessive voltage and high impedance
(5) Mold impedance analysis and automatic protection function
5. Ultrasonic control system
(1) Welding pressure process control
(2) Amplitude section and pressure section
(3) Welding quality management
(4) Welding data saving and output management
(5) Welding mode data management
(6) Welding working curve
(7) Fully imported photoelectric starting system (optional)

Rx-pw50 series equipment specification

Model	RX-PW50
Frequency	20KHZ
Ultrasonic electric box generator	RX-MSG20/30/40
Output power	2000/3000/4000W
Maximum pressure (n)	3000N
Net weight	75.8kg (excluding the weight of electric box)
Clamping height	50-130mm (excluding mold height)
Welding stroke	50mm
Operating air pressure	0.25-7Kg
Z- axis accuracy control	±0.02mm
Converter	RXSONIC
Cooling system	Air cooling
Control system	RX-MSG-P/S/X
Input voltage	220-240VAC-380VAC
Language selection	chinese
Overall dimension	L715 × W440 × H584MM
