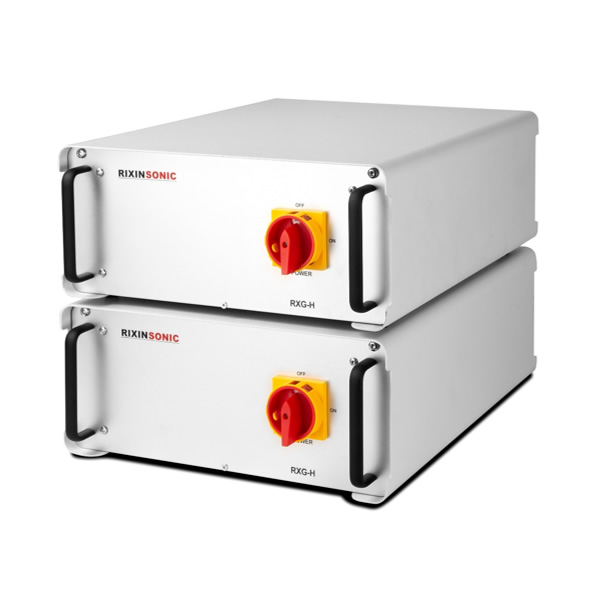

Model：RX-MSG - E

Digital ultrasonic sounder

Product details

Control system
■ welding quality management
■ time control
■ energy control
■ distance control
■ pressure section welding
■ pressure control
■ steam pressure digital input

Welding mode
■ time
■ relative distance
■ absolute distance
■ energy
■ continuous operation
■ cutting (grounding)

Functions and characteristics
■ ultrasonic automatically searches and adjusts the frequency during each welding process
■ the amplitude remains constant during ultrasonic welding.
■ the amplitude can be adjusted by 10-100%, and the amplitude section ratio can be adjusted as required
■ the electric box can start switching between 16 different resonance units
■ system abnormal protection: abnormal frequency, power overload and high impedance
■ secondary ultrasonic function
■ pressure section welding
■ welding data management and output

Rx-msg-e technical specifications
Operating frequency [kHz]	20(±300Hz)	15(±300Hz)
Output power [w]	4000/6000	five thousand
Electrical connection [v AC]	230 (L, N, PE), 50/60
Input current [a]	sixteen	sixteen
Power fuse [a]	2 x T 12.5 (internal)
Overall dimension (mm)	457 x 2236 146.5
Weight (kg)	eleven point seven
